Register Contensis with Azure AD

Note: this article applies to app registrations created after October 2021(see this link for further details on Azure AD changes).

To be able to register Contensis CMS with Azure, you will first need to complete the following actions on Azure:

1. Register a new application for each CMS instance
   Register new applications for each Contensis CMS instance that will be integrated with Azure. For example, if you have a live and development instance you will need to register two applications, one for the live CMS url and one for the development CMS url.
2. Update the application manifest
   Allows group integration and adds the application id url.
3. Update permissions
   Allows user integration.
4. Obtain relevant federation data for the CMS
   Obtaining credentials and discovery document data that is required to allow the Zengenti identity provider to federate with your registered Azure application.

Go to the Azure portal and click ‘Azure Active Directory’ from the options in the left panel.

You will now be taken to the ‘Azure Active Directory Overview’ screen.

Click ‘App Registrations’ from the ‘Manage’ section.

You now have the option to add a new registration.

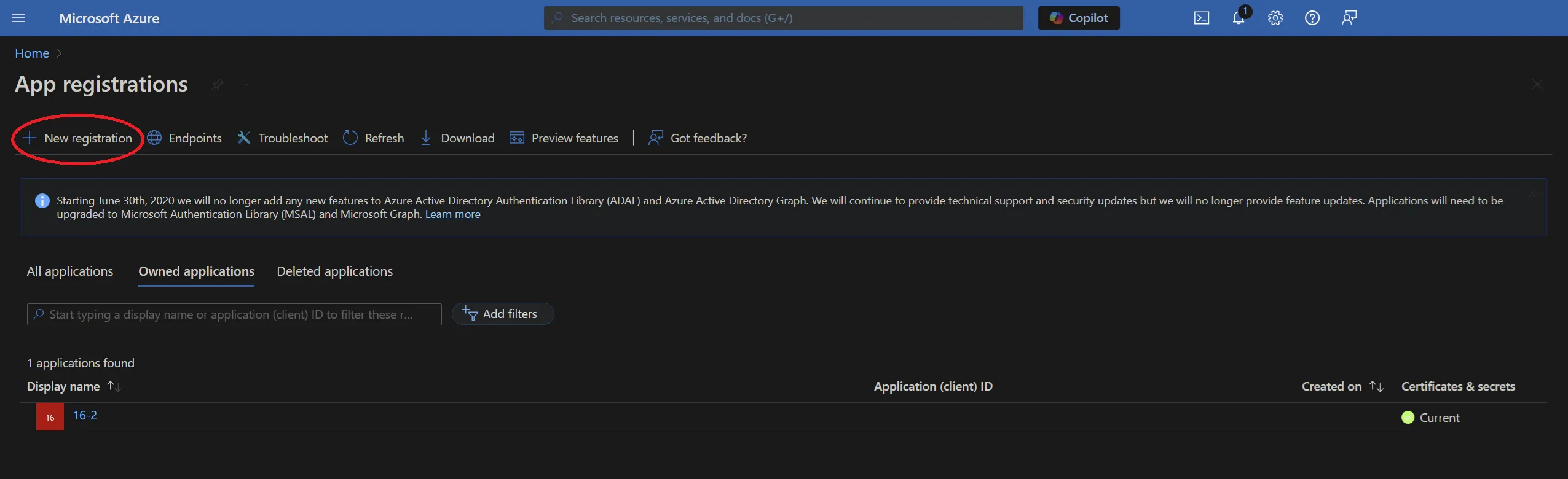

Click ‘+ New registration’ in the toolbar.

You’ll be presented with a form allowing you to enter initial application registration information.

Name
This is the display name for the registration in your Azure portal, and can be anything of your choosing.

Supported Account Types
This defines the types of accounts the application grants permissions to.

Redirect URI
This is not optional and is a requirement for the Zengenti identity provider. It should be entered in the following format:

https://<your cms domain>/authenticate/

e.g. https://zengenti.contensis.com/authenticate/

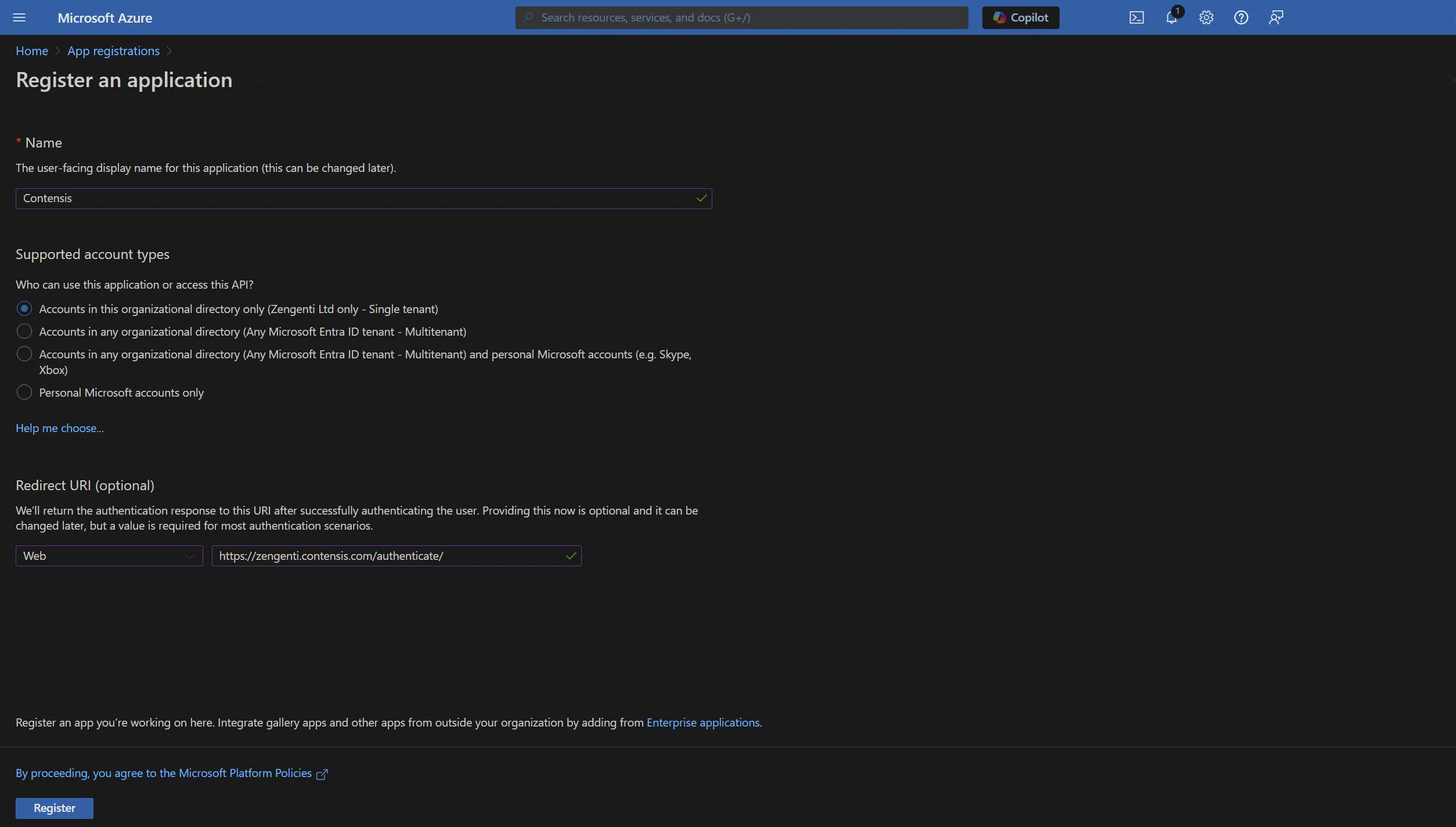

After completion, the form should look similar to the following:

Click ‘Register’. The application is now registered.

The application needs to be updated to include additional authentication options.

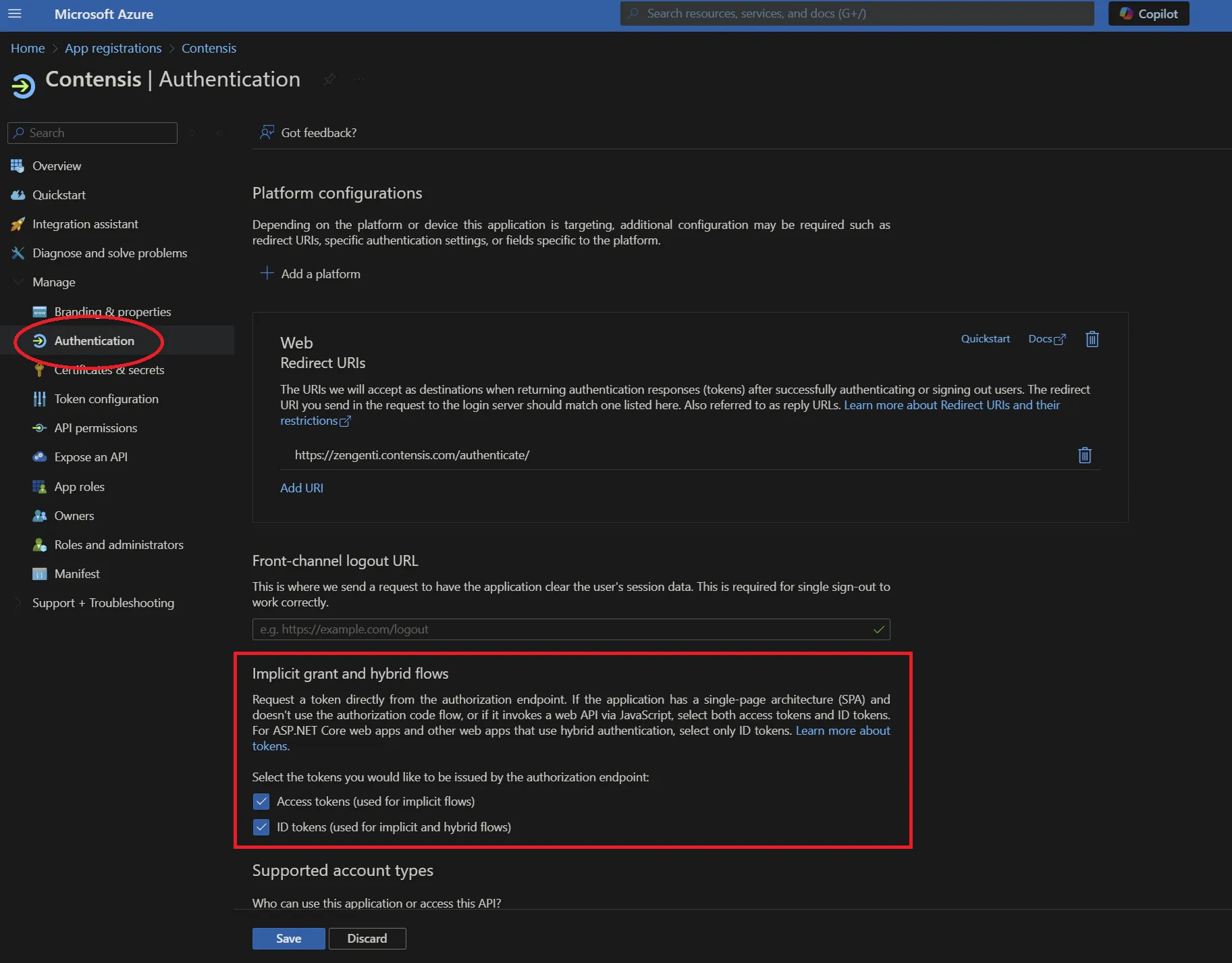

Click ‘Authentication’ from the application overview and ensure 'Access tokens' and 'ID tokens' are selected in the Implicit grant and hybrid flows section:

To allow the Zengenti identity provider to be able to identify itself, and process a user’s group membership, the application manifest must now be amended.

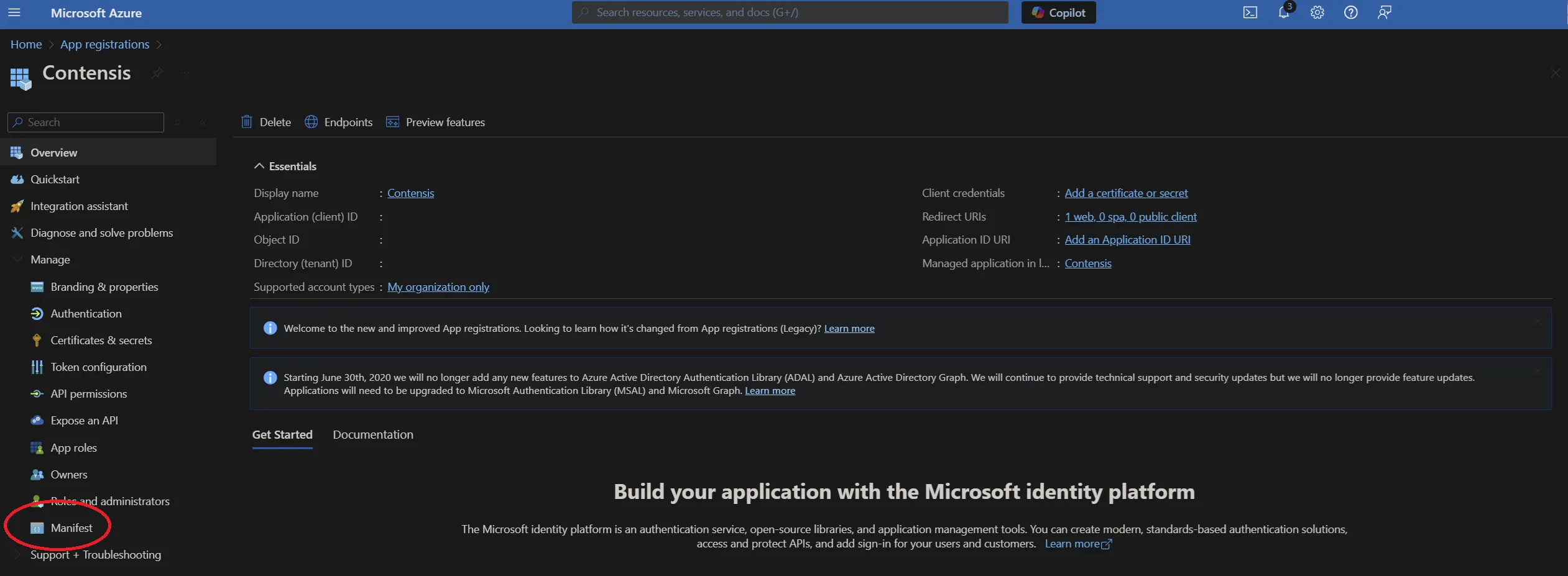

Click ‘Manifest’ from the application overview:

Update the ‘groupMembershipClaims’ value to ‘SecurityGroup’.

Click ‘Save’.

A message will display confirming that the manifest has been updated successfully.

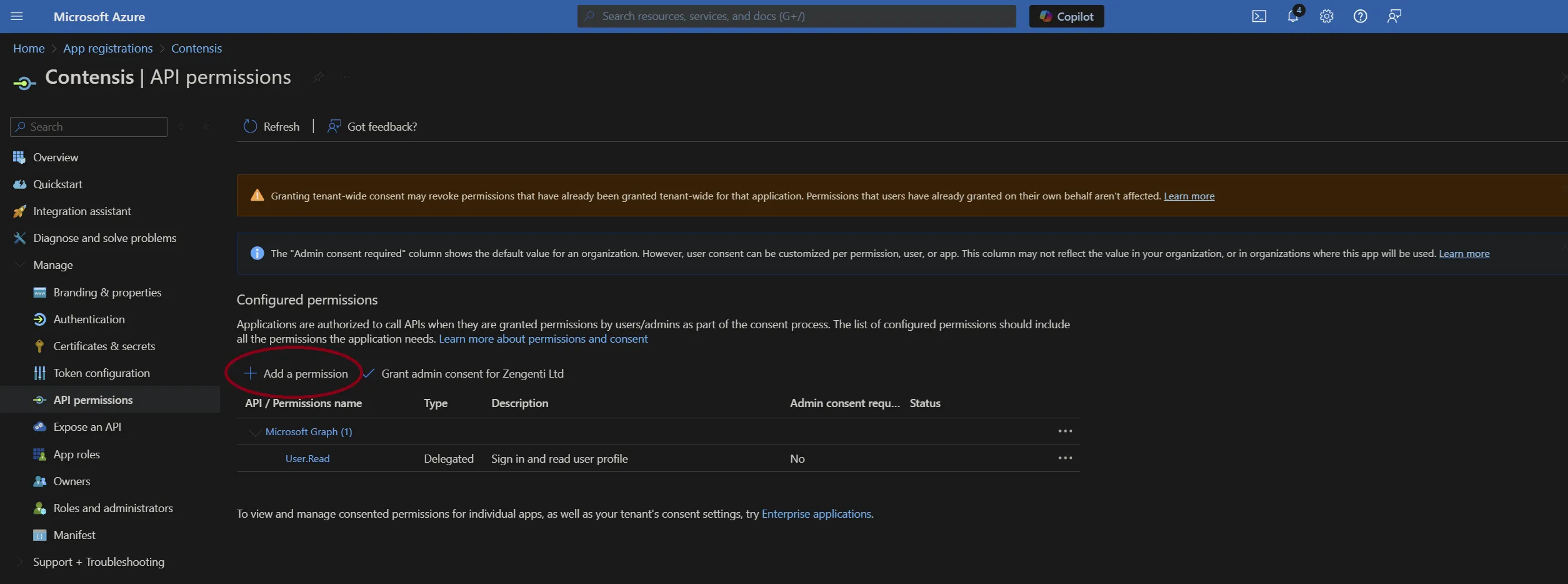

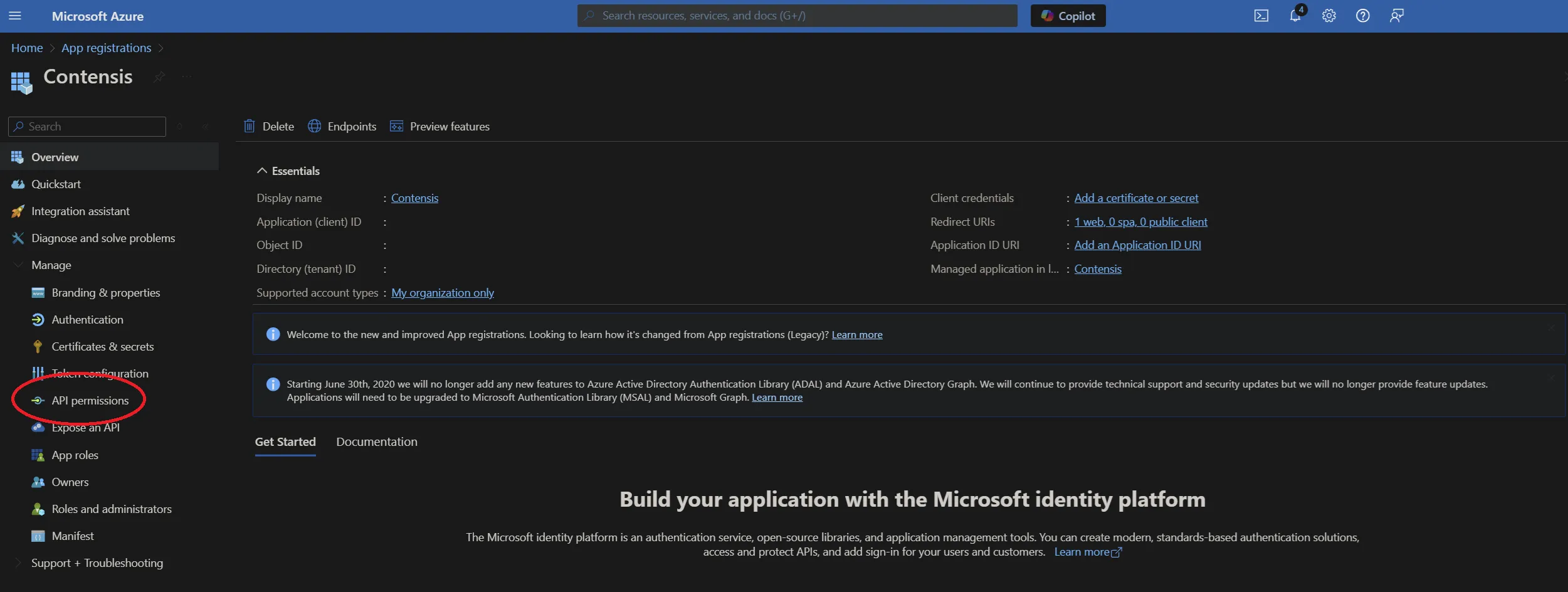

Click ‘API permissions’ and then click ‘+ Add a permission’.

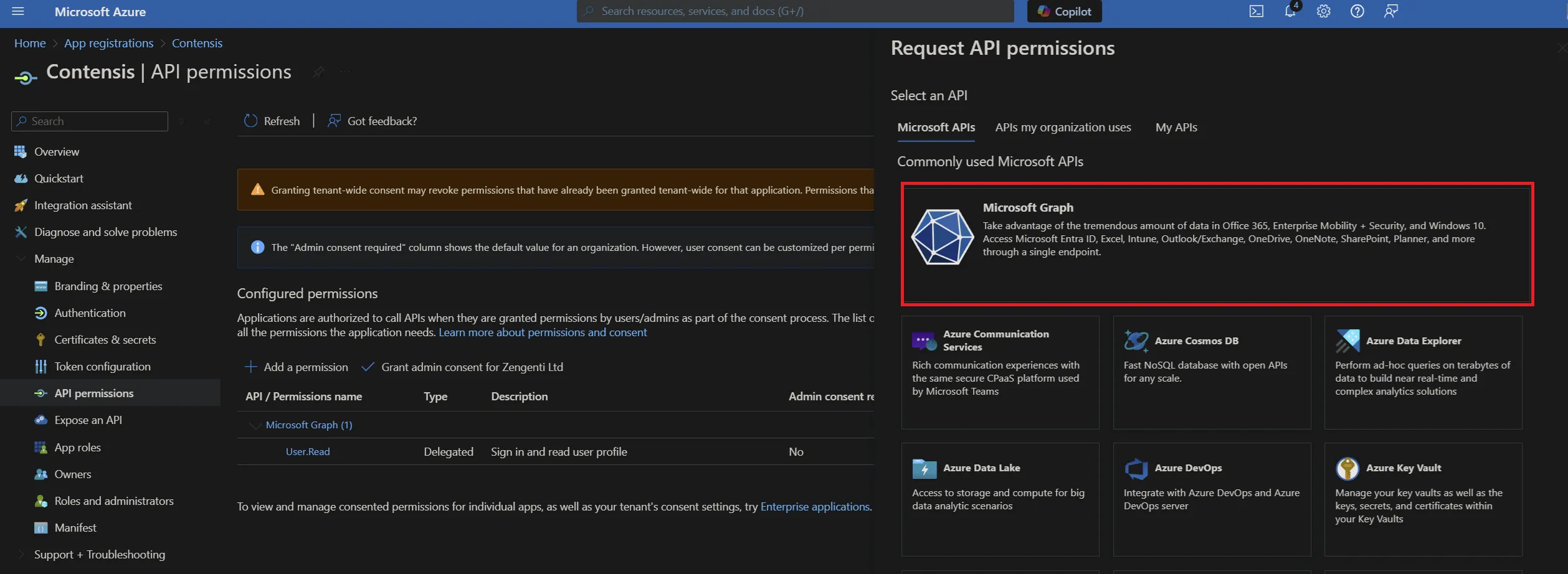

Click ‘Microsoft Graph’ from the top.

Now add the following permissions:

1. Delegated permissions
   • Directory.Read.All
   • User.Read
   • openid
   • profile

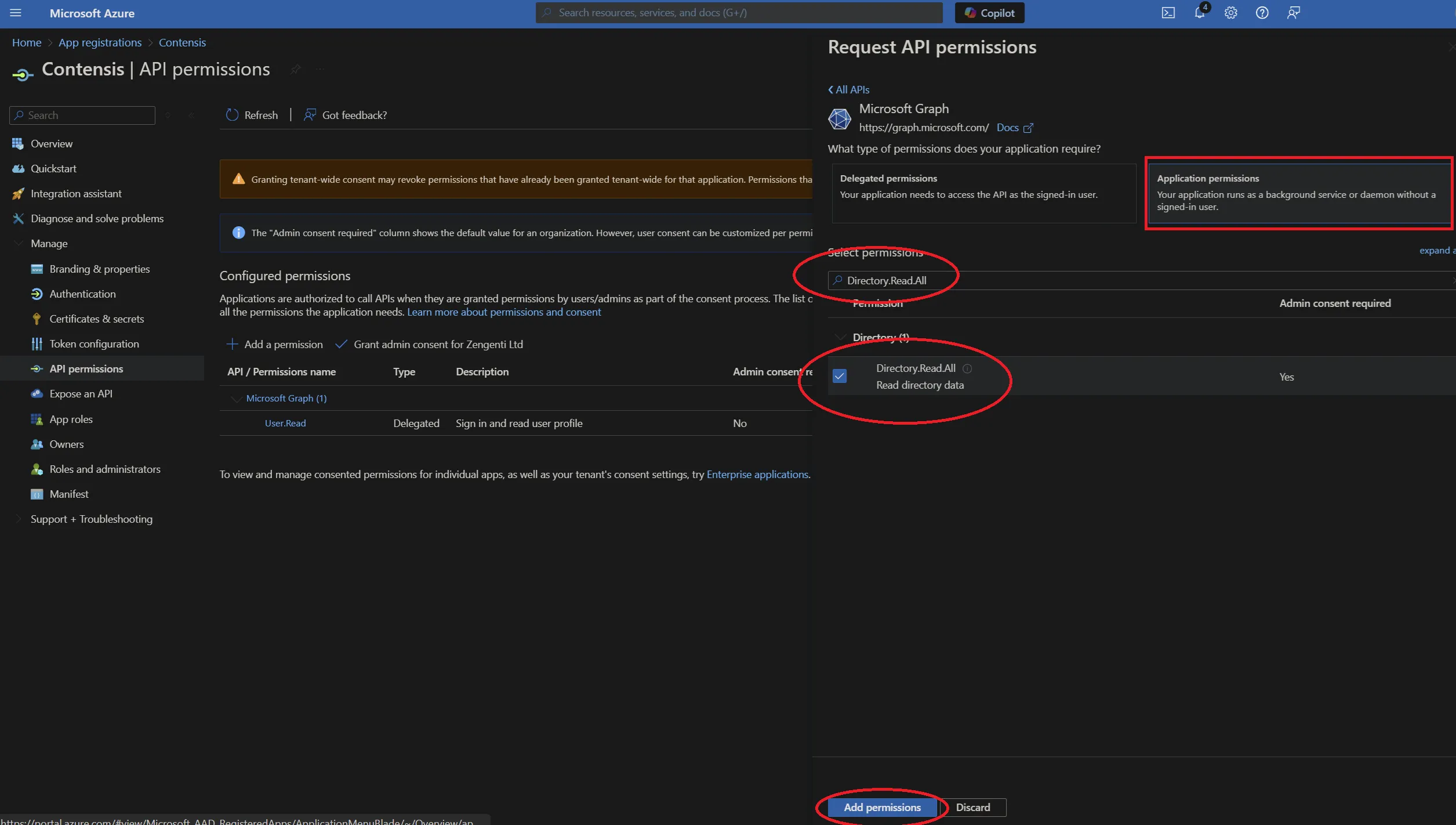

2. Application permissions
   • Directory.Read.All
   • User.Read.All

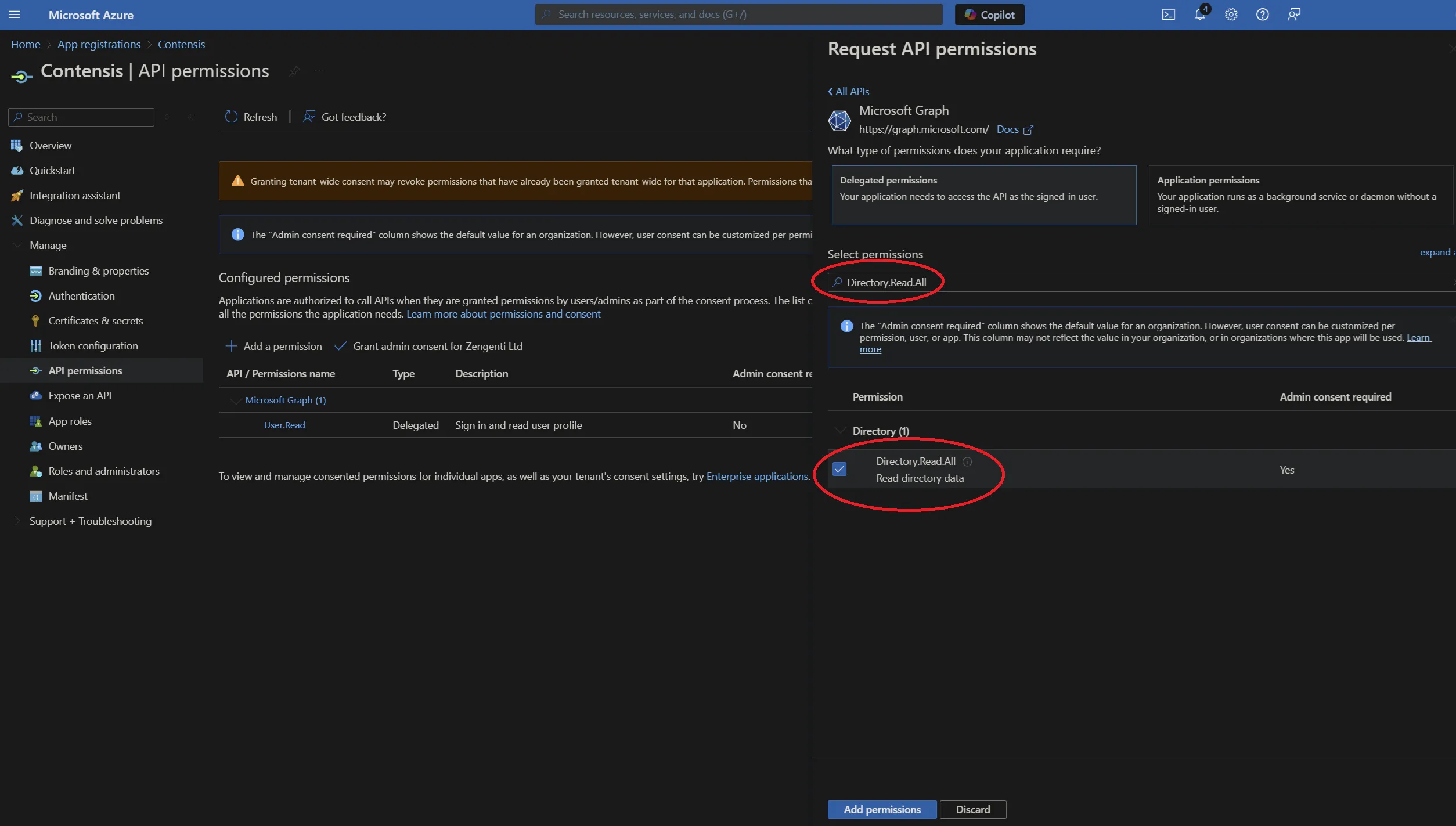

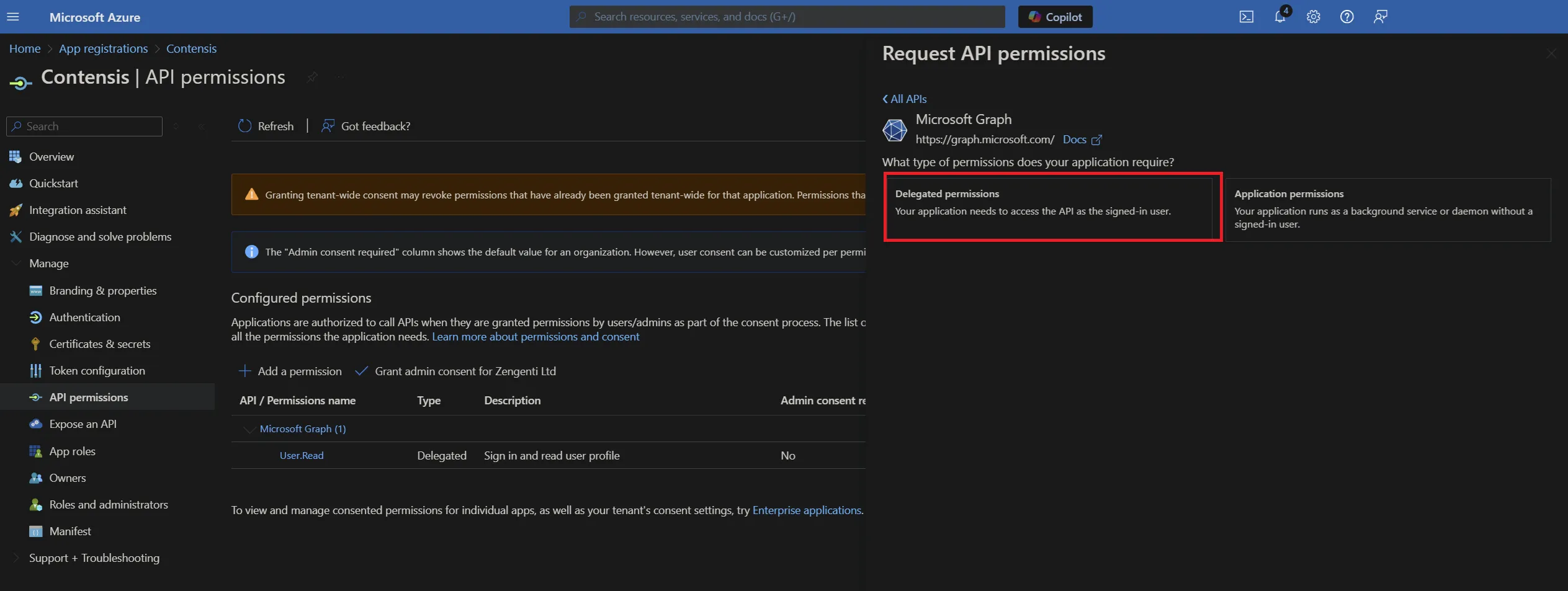

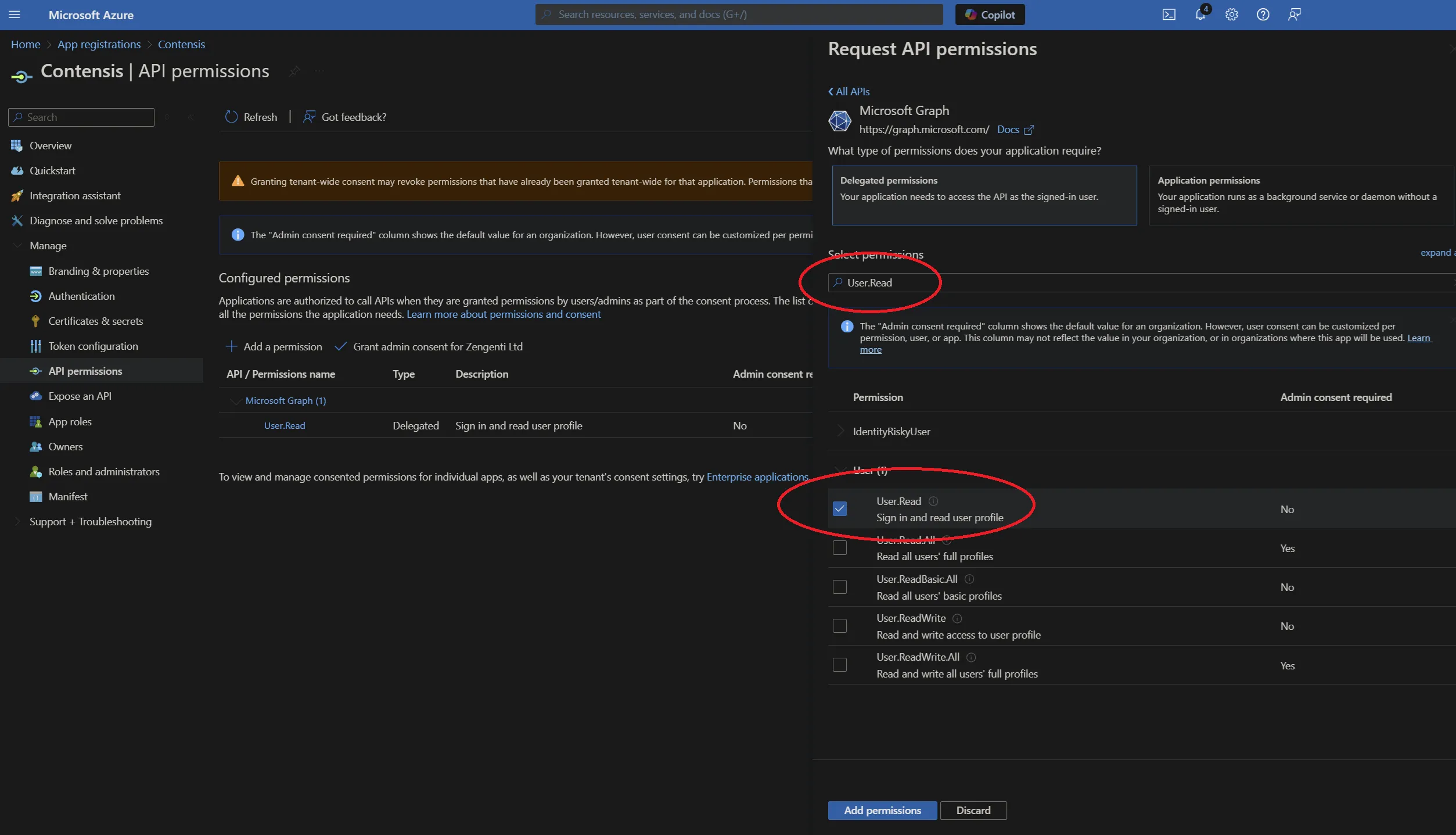

To add these, click on the relevant permission type and copy/paste the permission as listed above into the search field, then check the permission as shown below:

When the three permission options have been selected, click ‘Add permissions’.

This will take you back to the API permissions page, where a warning relating to changed permissions will be visible.

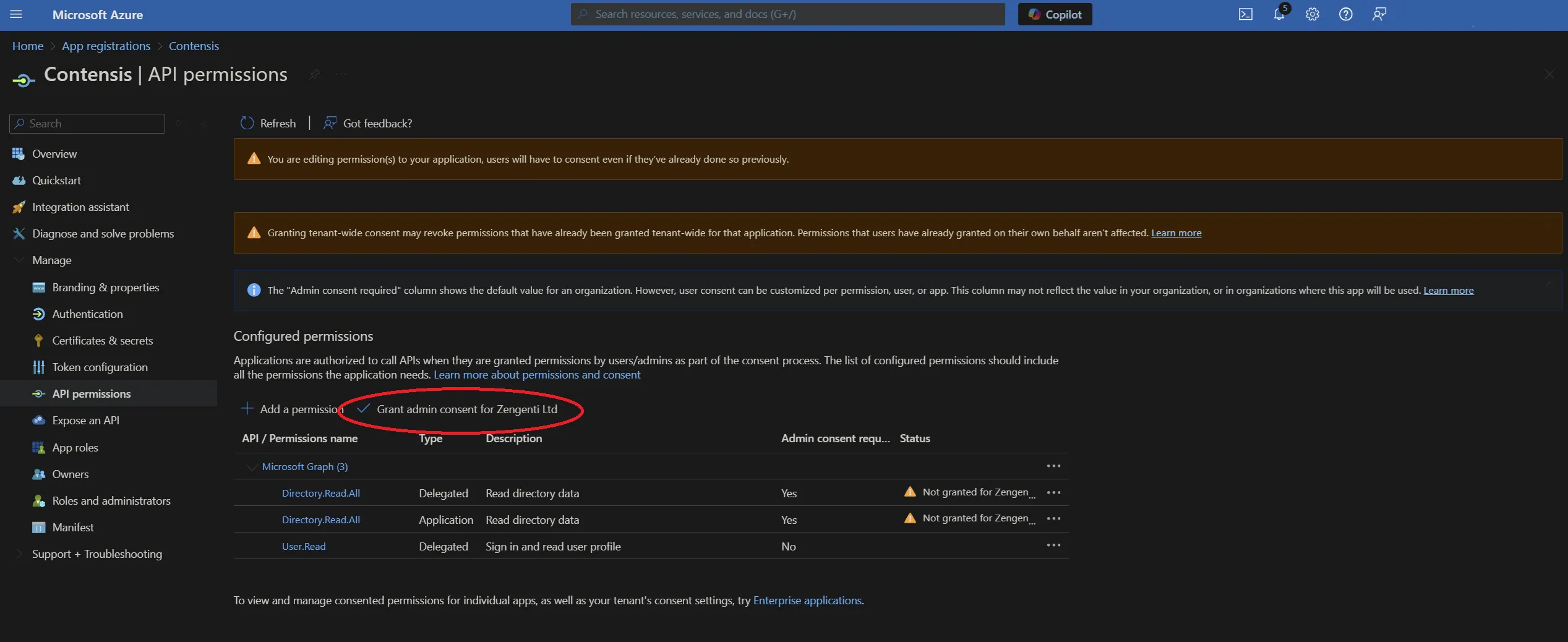

To allow the permissions to be available for the Zengenti identity provider, you must grant admin access. Click ‘Grant admin consent’ at the bottom of the page.

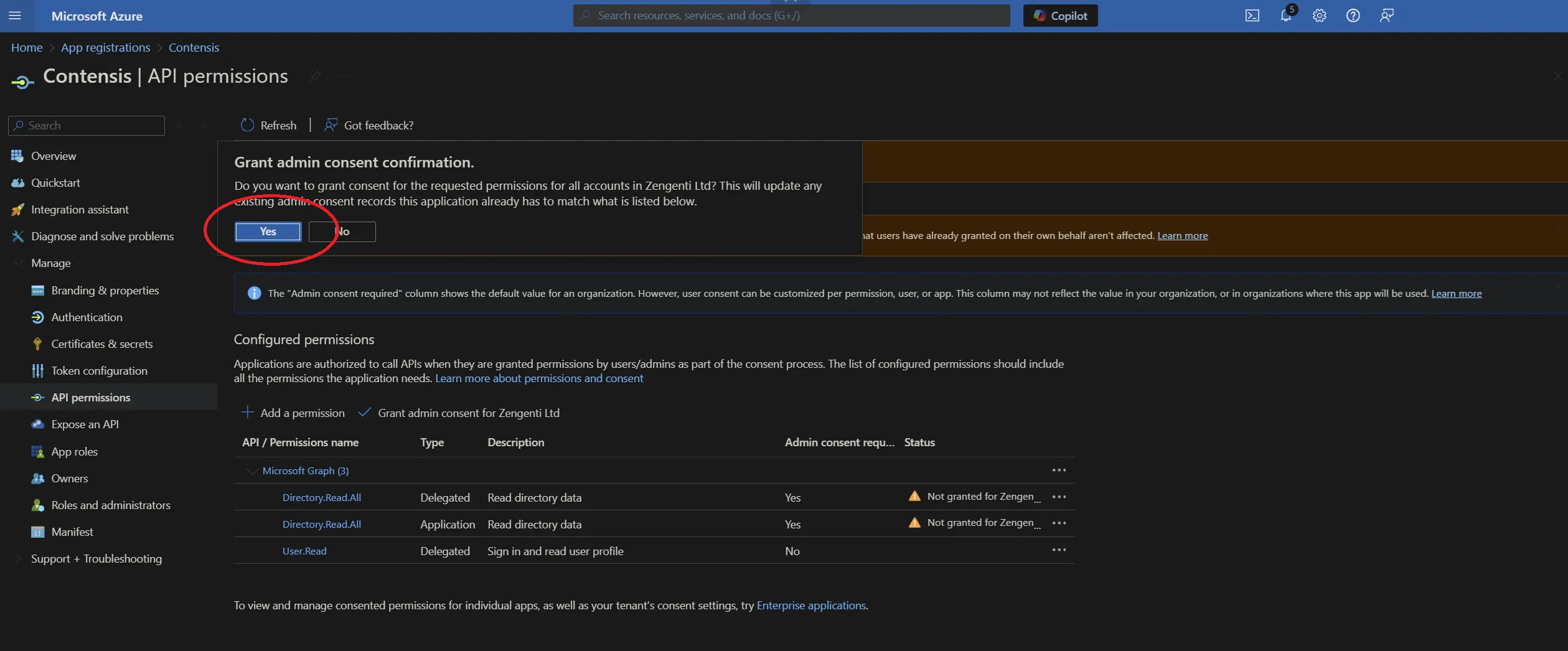

A further warning will then display - click ‘Yes’.

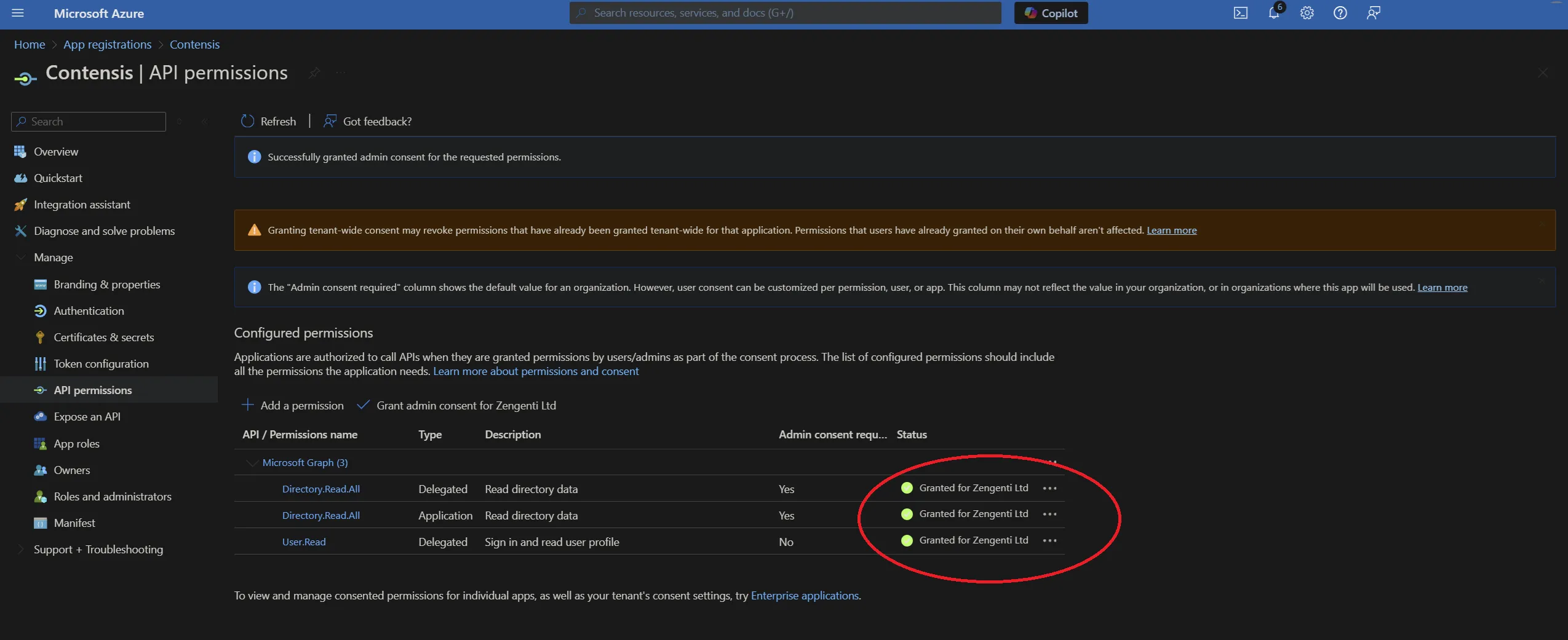

A success message will display, together with details of the permissions granted.

If the user that will log in into Contensis CMS for the very first time after registration does not have Azure AD global admin permissions you need an additional step to enable admin consent requests.

Go to “Azure Active Directory” > "Enterprise applications" and on the left menu, there is a 'User settings' entry that has an Admin consent requests section. This section needs to be enabled as follows and should have a user, group or role selected that will receive notifications for admin consent via email. The admin consent needs to be granted once per lifetime of the application.

The Zengenti identity provider requires the following information to federate with your Azure instance:

• Metadata endpoint
• Application id
• Tenant id
• Tenant name
• Application key

Go to “Azure Active Directory” > App Registrations

e.g. Home > Zengenti Ltd > App Registrations

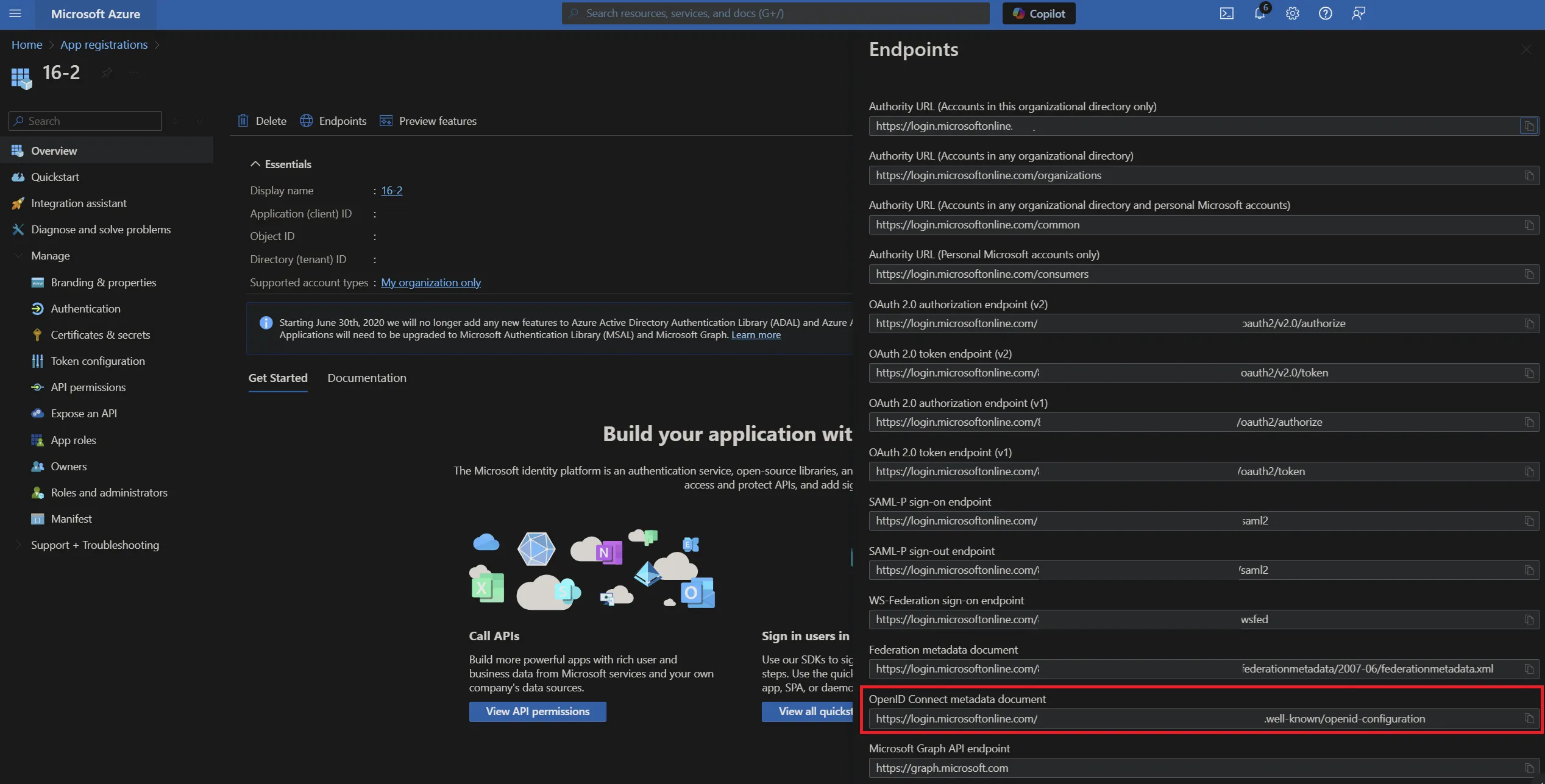

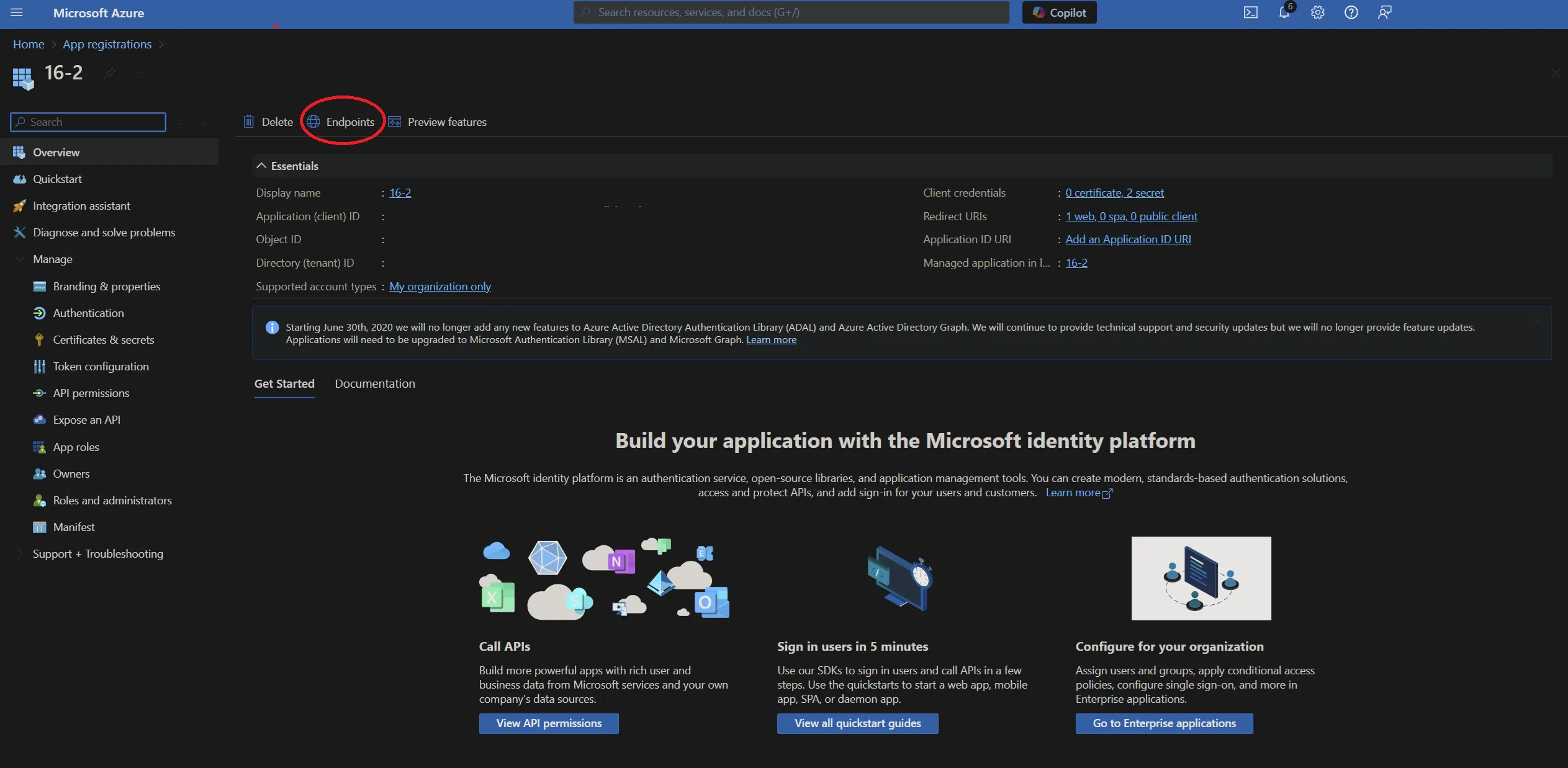

Click ‘Endpoints’ in the top bar.

You will see a list of available application endpoints.

Copy the link for ‘OpenID Connect metadata document’

Click ‘Overview’ in the application options pane and then copy the ‘Application (client) ID’ which will be required when configuring Contensis to use your Azure AD instance.

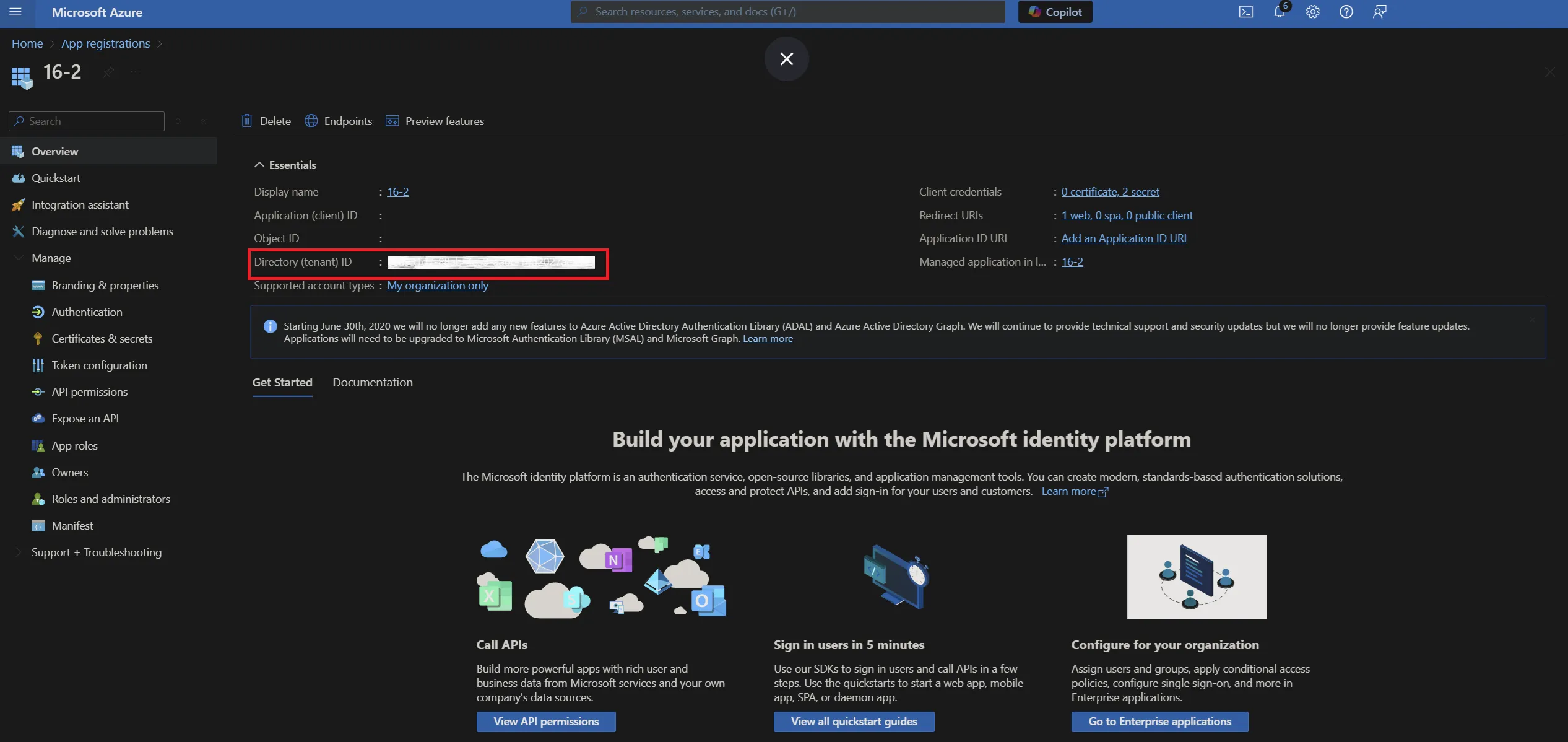

In the ‘Overview’ screen, copy the 'Directory (tenant) ID’ which will be required when configuring Contensis to use your Azure AD instance.

Select ‘Azure Active Directory’ from the panel on the left, and then ‘Custom Domain Names’. You can then copy the ‘Name’ listed as the ‘Primary’ - this is your tenant name and will be required when configuring Contensis to use your Azure AD instance.

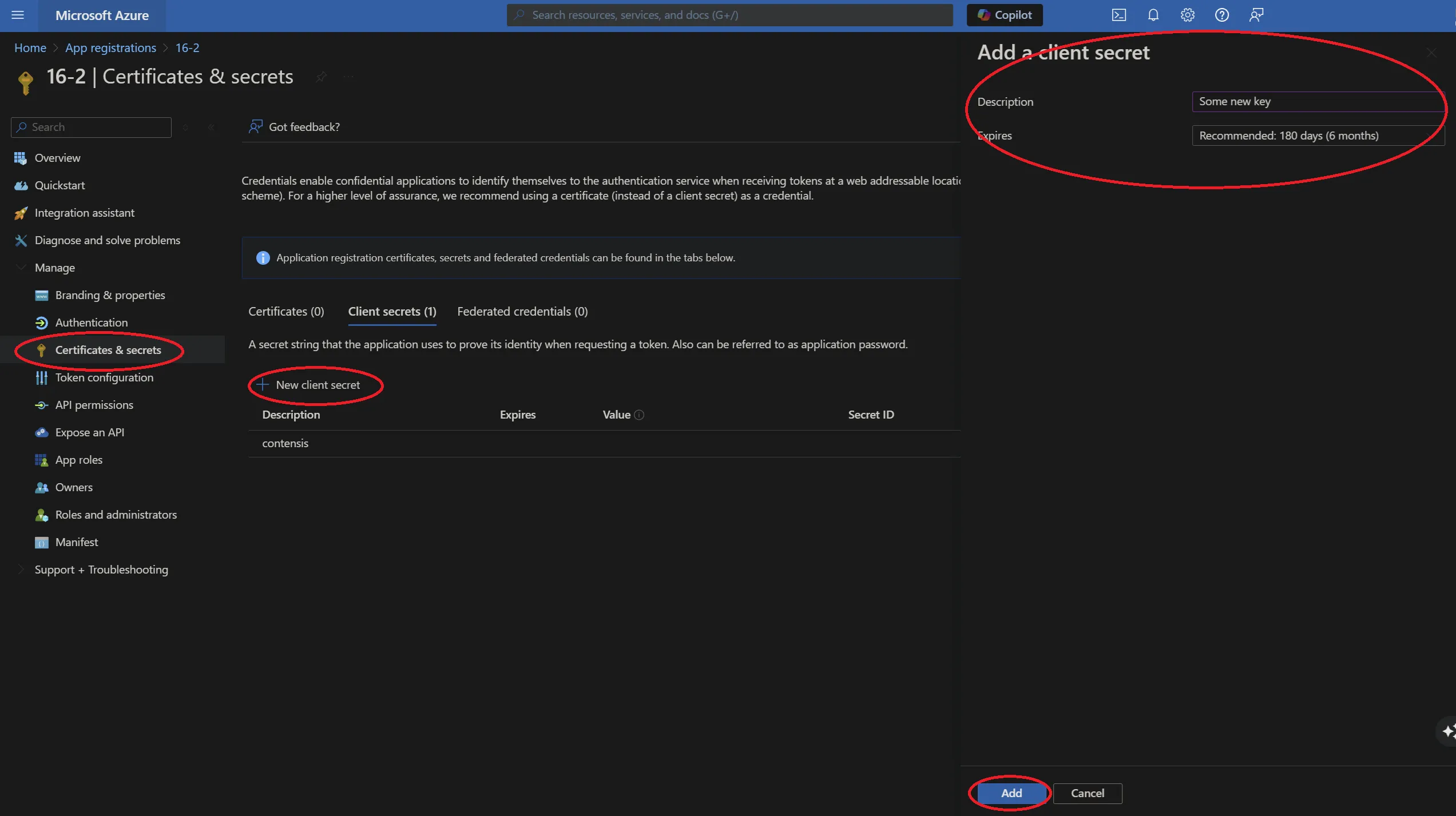

In the application overview panel, click ‘Certificates & secrets’ and then click ‘+ New client secret’.

You will see a form for naming and choosing the lifespan of a key. Complete as appropriate for your requirements, then click ‘Add’.

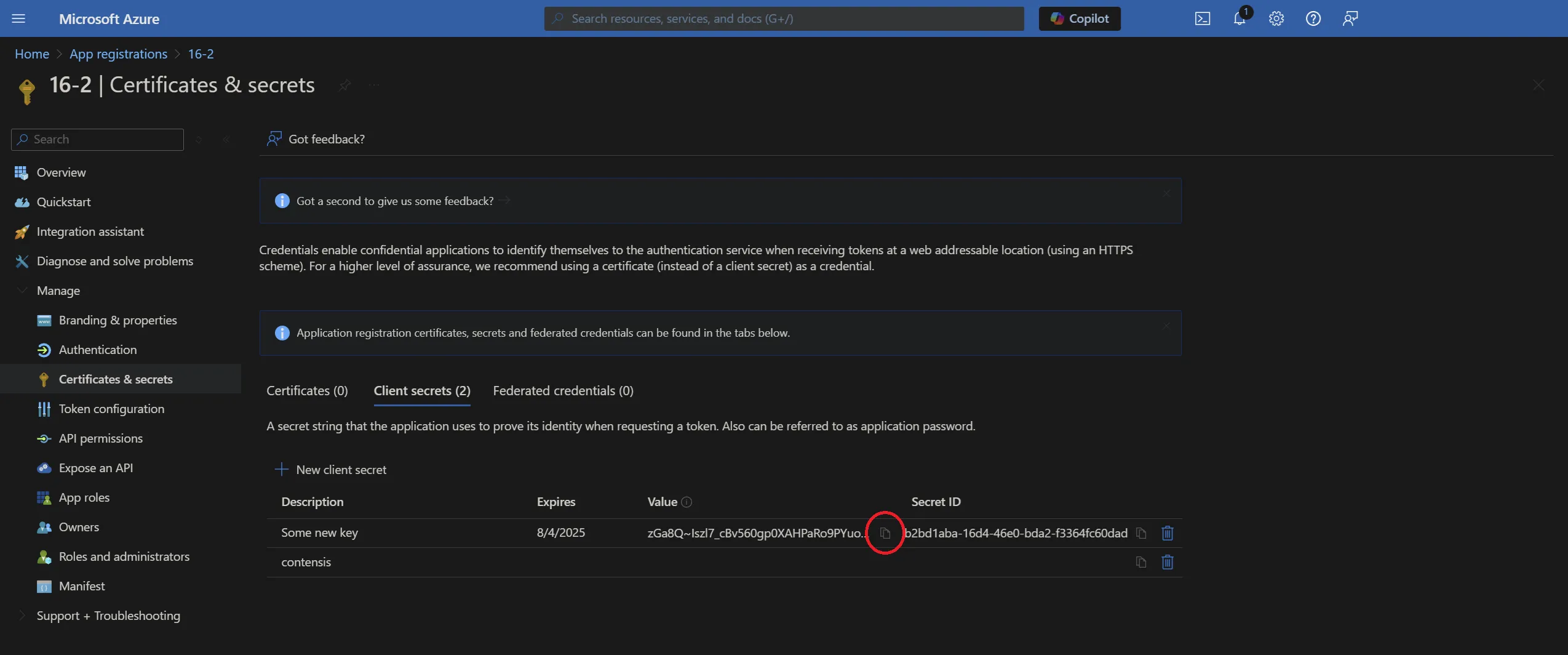

You will now need to copy the key as directed before navigating away from this screen. Click the ‘Copy to clipboard’ icon.

Important: Once you leave this screen or carry out any other action, you will no longer be able to retrieve this key value.

You have now completed the registration of Contensis with Azure and are now ready to configure Contensis to use Azure AD.
